Event Driven Architecture challenges

Receiver get OrderCanceled before OrderCreated

How to avoid this case

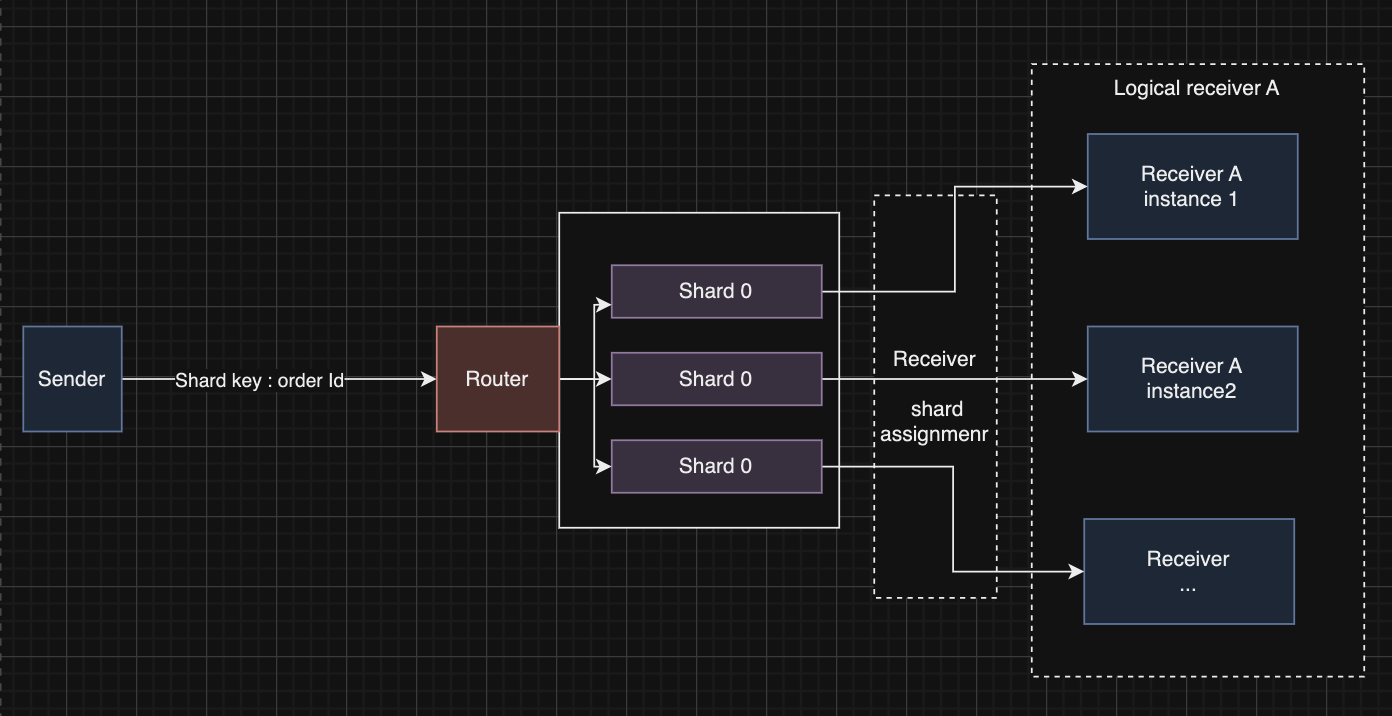

A common solution is to use sharded (partitioned) channels. Implemented by modern message brokers like Apache Kafka and AWS Kinesis, - For message use key - order id. It guarantees that related order messages send to the same shards. - The message broker assigns each partition to an instance of the replicated receiver Pasted image 20231012191500.png Each event for a particular order is published to the same shard, which is read by a single consumer instance. As a result, these messages are guaranteed to be processed in order.

Duplicate messages in at least once

Use a message broker that preserves ordering when redelivering messages.

"An Order Created event followed by an Order Cancelled event for the same Order, and that somehow the Order Created event wasn’t acknowledged. The message broker should redeliver both the Order Created and Order Cancelled events. If it only redelivers the Order Created, the client may undo the cancelling of the Order."

  • Write idempotent message handlers.
  • Track messages and discard duplicates.
    • Use this if
      • application logic is not idempotent
      • or your message broker doesn’t preserve ordering when redelivering messages.

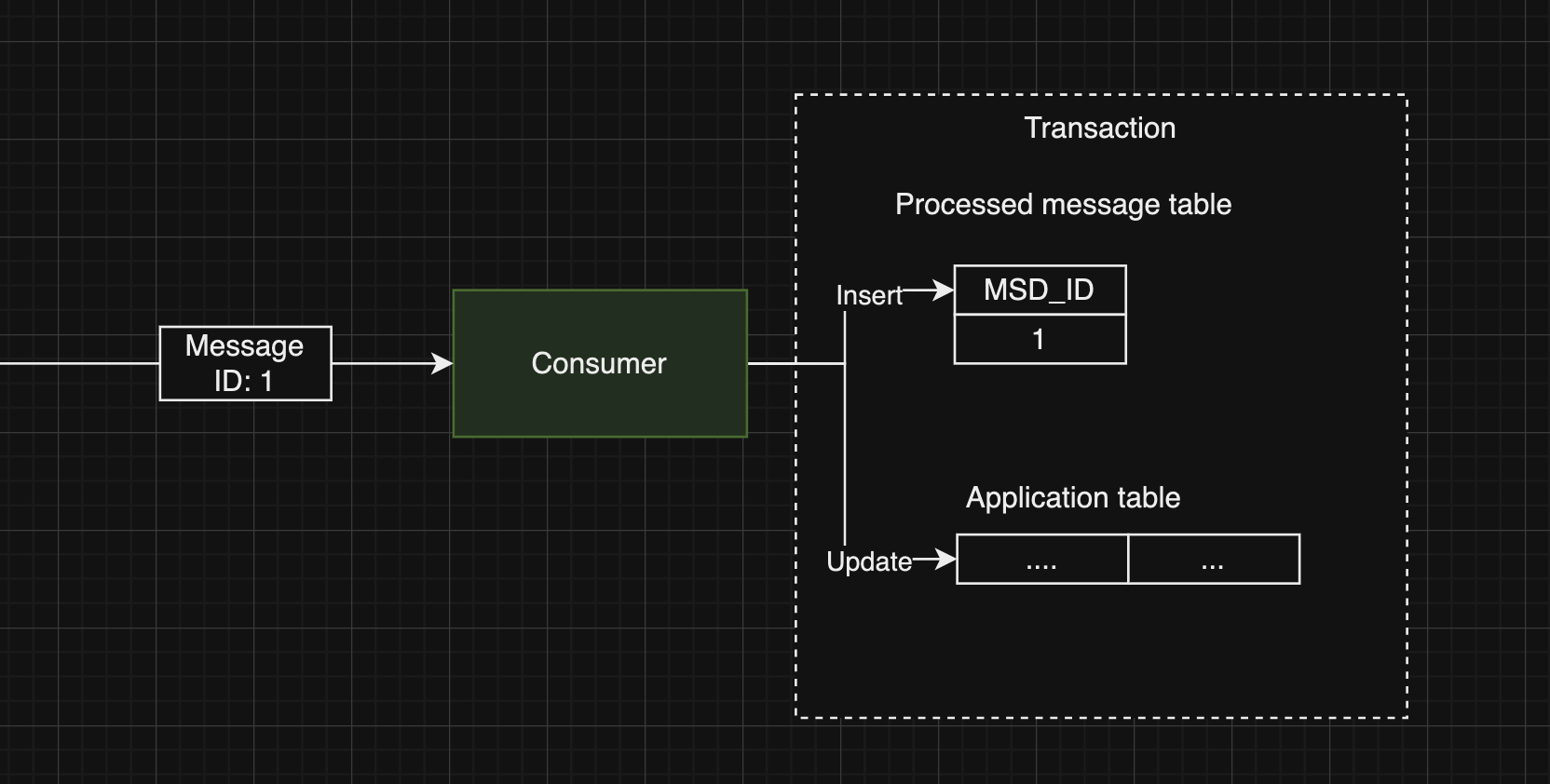

      • Pasted image 20231012193539.png

Transactional sending message

Transactional outbox

https://microservices.io/patterns/data/transactional-outbox.html

Message relay by implementing Polling publisher

https://microservices.io/patterns/data/polling-publisher.html

  • ✅ simple approach that works reasonably well at low scale
  • ⛔ frequently polling the database can be expensive

Message Relay by implementing the transaction log tailing pattern

https://microservices.io/patterns/data/transaction-log-tailing.html

Pros and cons

  • ✅ Messages are guaranteed to be sent if and only if the database transaction commits
  • ✅ Ordering message sending
  • ⛔ Message publishes at least once.
    • In case when Message relay crashes after sending message to broker.

References

  1. Microservices patterns by Chris Richardson, chapter 3
